Universal Mini-Coders for marking porous surfaces

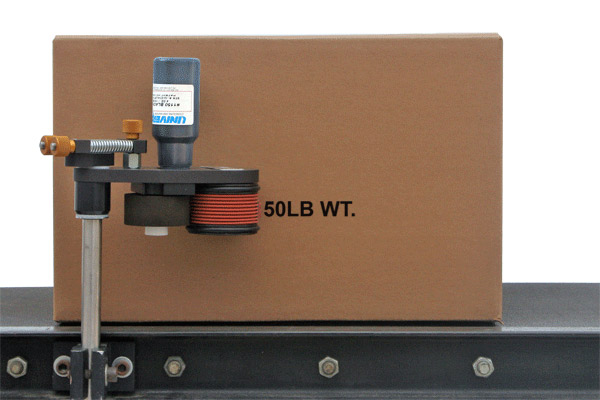

Universal Mini-Coders are compact production coders designed for code printing applications requiring a relatively small print area. These machines are available in 1-1/8" x 9.1" or a 2.0" x 9.1" print area sizes and are used for marking on porous surfaces such as corrugated cartons, paper, etc. A unique spring tension mechanism enables the coder to be quickly set for either right hand or left hand operation. These units are supplied with a mounting bracket, a dry Microcell Ink Roll and a Print Drum which accommodates Universal Ribtype printing dies. A quick change feature enables the print drum to be pulled off the axle without tools for off-line code changes.

Non-Indexing Models have print drums which rotate freely on bearings and will print codes at a random starting position on cartons and will repeat the code down the length of the carton at a 9.1" repeat interval.

MC-10NI 1-1/8" Non-Indexing Mini-Coder - Print Area: 1-1/8" x 9.1"

MC-20NI 2" Non-Indexing Mini-Coder - Print Area: 2" x 9.1"

Indexing Models have a spring return mechanism which returns the print drum to the index position after printing each carton. This feature enables the code on each carton to be registered in the same starting position relative to the leading edge. The codes will still repeat down the length of the carton at a 9.1" repeat interval.

MC-10 1-1/8" Indexing Mini-Coder - Print Area: 1-1/8" x 9.1"

MC-20 2" Indexing Mini-Coder - Print Area: 2" x 9.1"
