Universal Midsize Coder

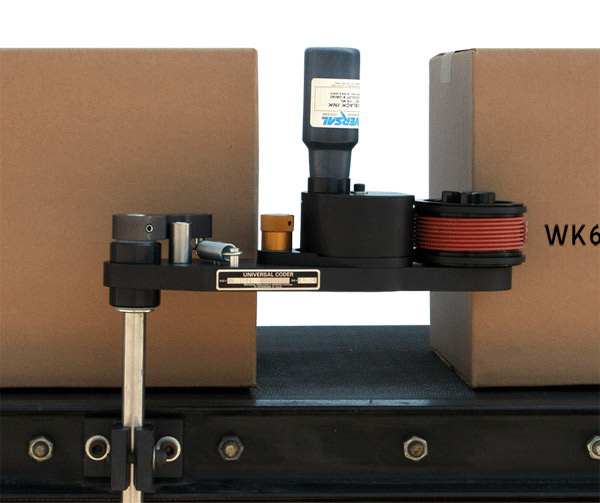

Model Shown: MS-120

with optional Reservoir Roll Cover
Universal's Midsize Coders were designed with many unique features to provide the ultimate in versatility. Interchangeable print drums are available in 12", 15" & 18" circumference sizes and can be field converted in a matter of minutes. Print registration on indexing models can be adjusted by loosening the Print Drum retaining knob and rotating the drum to a new index position. An Ink Roller position adjusting eccentric provides precise control over the ink roll to die face contact pressure. The print drum cam index mechanism features a guide shaft mounted compression spring for durability. Replaceable delrin guides and a ball bearing cam follower provide smooth, reliable indexing action even on slow moving conveyors and carton sealers. Mounting configuration is field convertible.

Non-Indexing Models

MS-120NI 1-1/8" Print Width Non-Indexing Midsize Coder w/12" Circumference Print Drum

MS-150NI 1-1/8" Print Width Non-Indexing Midsize Coder w/15" Circumference Print Drum

MS-180NI 1-1/8" Print Width Non-Indexing Midsize Coder w/18" Circumference Print Drum

MS-220NI 2" Print Width Non-Indexing Midsize Coder w/12" Circumference Print Drum

MS-250NI 2" Print Width Non-Indexing Midsize Coder w/15" Circumference Print Drum

MS-280NI 2" Print Width Non-Indexing Midsize Coder w/18" Circumference Print Drum

Indexing Models

MS-120 1-1/8" Print Width Indexing Midsize Coder w/12" Circumference Print Drum

MS-150 1-1/8" Print Width Indexing Midsize Coder w/15" Circumference Print Drum

MS-180 1-1/8" Print Width Indexing Midsize Coder w/18" Circumference Print Drum

MS-220 2" Print Width Indexing Midsize Coder w/12" Circumference Print Drum

MS-250 2" Print Width Indexing Midsize Coder w/15" Circumference Print Drum

MS-280 2" Print Width Indexing Midsize Coder w/18" Circumference Print Drum
