USMR Mounting Systems

Standard mounting systems for the USMR Series Micro-Spray Markers are available in both Top Mount and Side Mount models. The two models differ only in the design of the base.

The Top Mount model has a flange base for mounting on a machine top plate. The Side Mount model has a base designed for mounting on the side of a machine frame or on the standard side rails of powered conveyors.

For added convenience, both models are available with extended vertical columns with an additional mount for a USM-GFR Gravity Feed Reservoir.

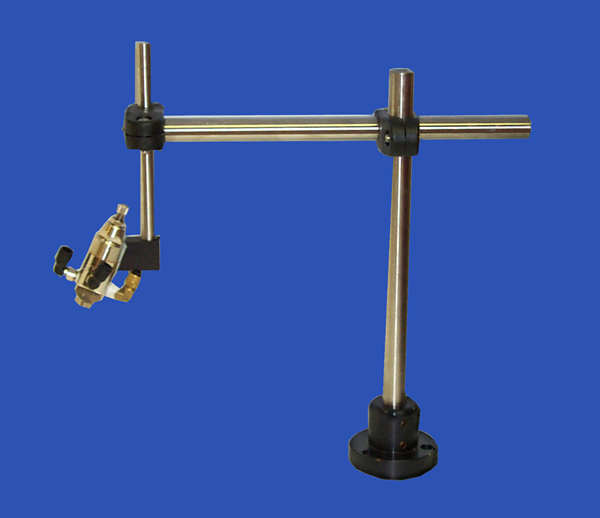

USMR-MSA-TM Top Mount Model

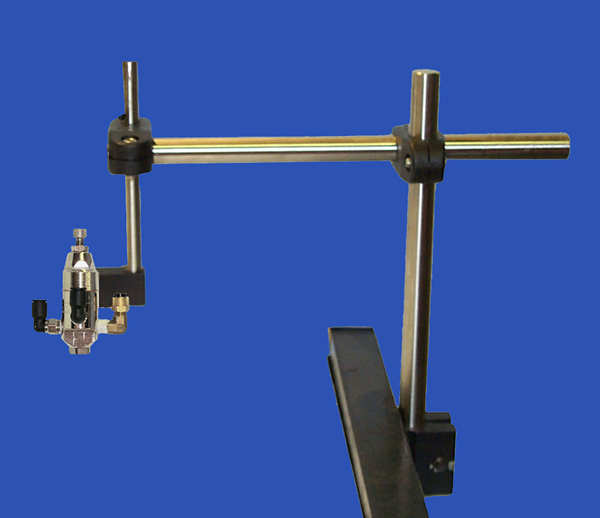

USMR-MSA-SM Side Mount Model
